KH100+ Handheld Remote Key Programmer (Lonsdor)

Lonsdor KH100+ Remote Key Programmer

---

Lonsdor KH100+ is a new and improved versatile hand-held smart device with a wide array of features, such as simulating/generating chips, access card cloning, generating remotes (key), generating smart keys (card), detecting remote frequencies, detecting infrared signals, detecting immobilizer areas, detecting remote proximity areas, unlocking Toyota smart keys, and more.



Latest Improvements:

1. Enter the settings menu
2. Connect the device to a network
3. Choose [Check for Updates]
4. One-click for online update!

Lonsdor KH100+ Functions:

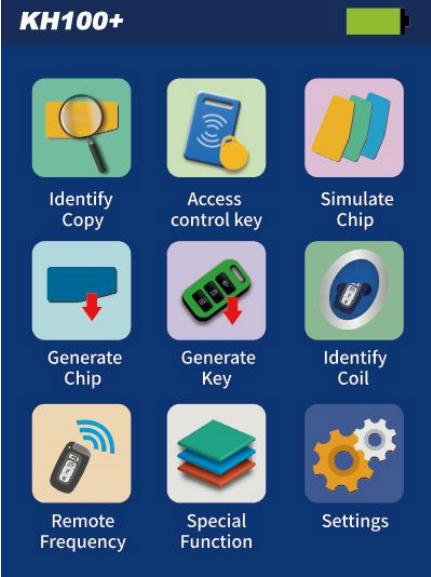

Upon activation, you will see the home menu.

Identify Copy

Click [Identify Copy] and follow system prompts to identify the remote.


Access Control Key

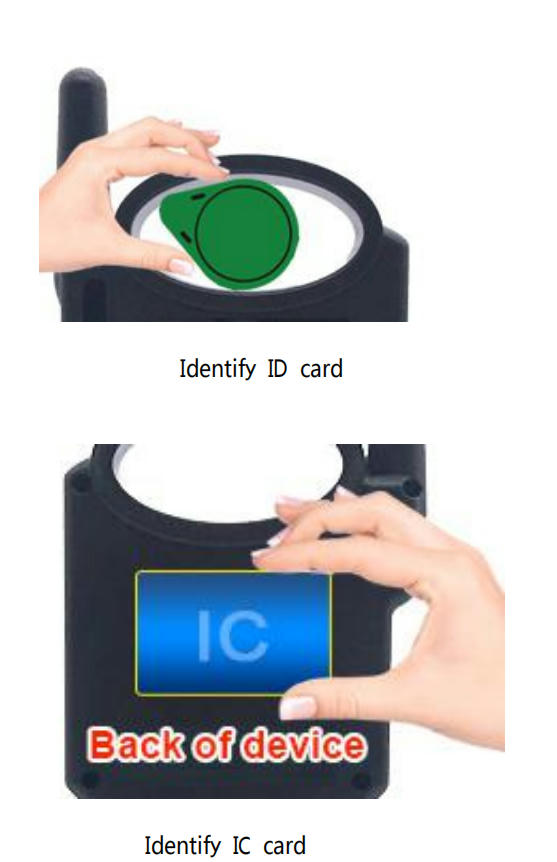

Click [Access Control Key] and follow system prompts to identify IC cards and generate garage keys.


Simulate Chip

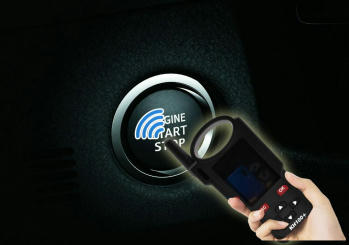

Move the antenna near the ignition switch as shown below, then select the chip to simulate.
This device supports the following chip types: 4D / 46 / 48 / 47

Generate Chip

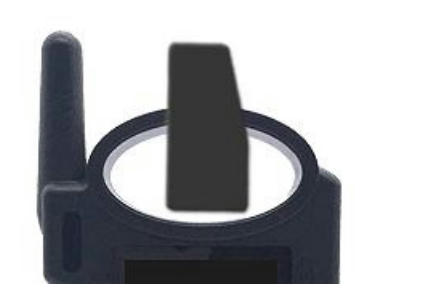

Place the desired chip into the induction slot, choose the corresponding chip on the KH100+, and follow addition prompts on-screen.
This device supports the following chip types: 4D / 46 / 48 / T5 / 7935 / 8A / 4C / Chip conversion

Please Note: Some chip data will be covered and locked.


Generate Remote

Click [Generate Key] -> [Generate Remote], then choose the corresponding vehicle type to generate a remote according to different regions.

Generate Smart Key

Click [Generate Key] -> [Generate Smart Key], then choose the corresponding vehicle type to generate a smart key/card according to different regions.



Identify Coil

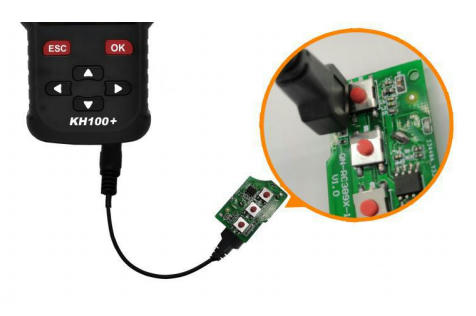

1. Proximity area search: Connect the remote key with the remote connector, then move the antenna near the key in the position as shown below. If an inductive signal is identified, the KH100+ will begin to continuously make a sound.

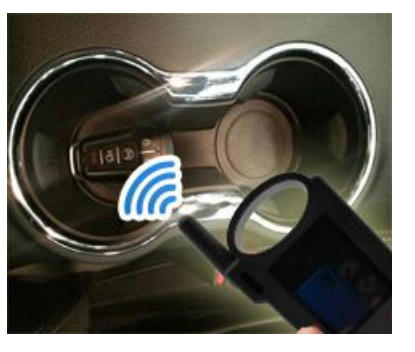

2. Detect IMMO: Connect the remote key with the remote connector, then move the antenna near the immobilizer. If a signal is detected, the KH100+ will beep.



Remote Frequency

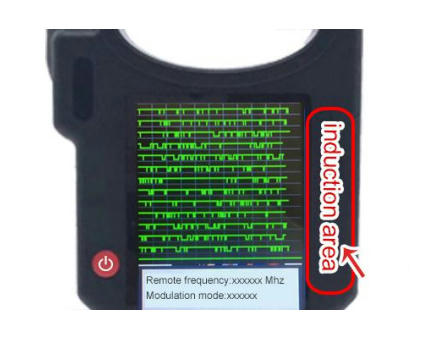

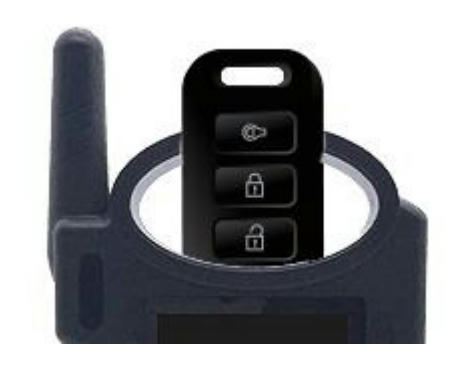

Place the remote at the KH100+'s induction area to detect the frequency of the remote.



Special Functions
1. Detect Infrared Signal

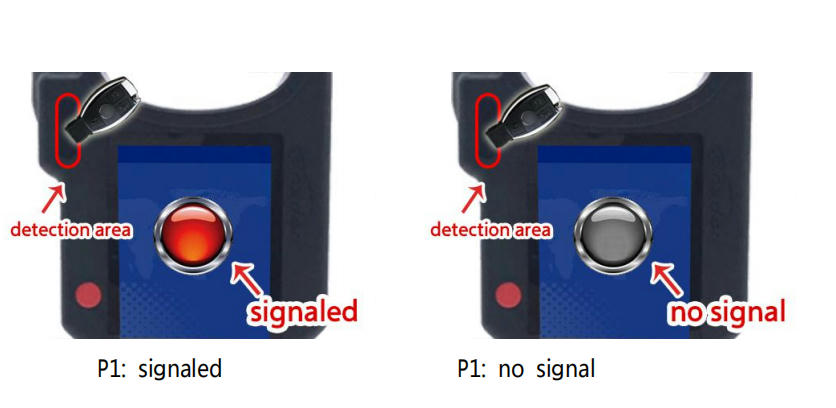

Place the remote at the infrared signal detection area. Press a button on the remote once. The light on the KH100+'s screen will turn on if a signal is detected.


2. FT-Series Smart Keys

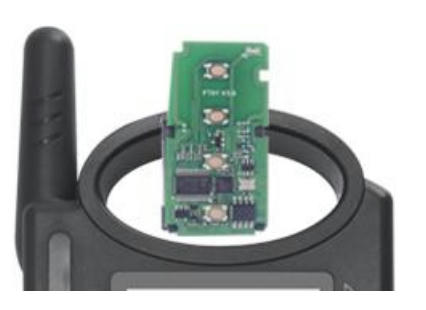

For the FT-Series Toyota and Lexus smart keys from Lonsdor, you can read version info, modify key values, and unlock or upgrade programs. Place the smart key or smart key board as shown below and click [Select].


3. Unlock Toyota Smart Key / Detect Toyota Key Status
Place in the smart key, and click [Select] to proceed.


4. Recharge Key
This function is available for keys with rechargable batteries. Place in the key and click [OK] as shown below.
